Quick Details

  • Light Source: LED
  • Item Type: Panel Lights
  • LED Light Source: 36W
  • Warranty(Years): 3
  • Input Voltage(V): 85-265v
  • Lamp Power(W): 36
  • Lamp Luminous Flux(lm): 1600
  • Lamp Luminous Efficiency(lm/w): 100
  • CRI (Ra>): 85
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -30 - 65
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum Alloy
  • IP Rating: IP44
  • Certification: C-tick, CCC, CE, EMC, FCC, LVD, REACH, RoHS, SAA, UL, VDE
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: PN-63P23W60cm1

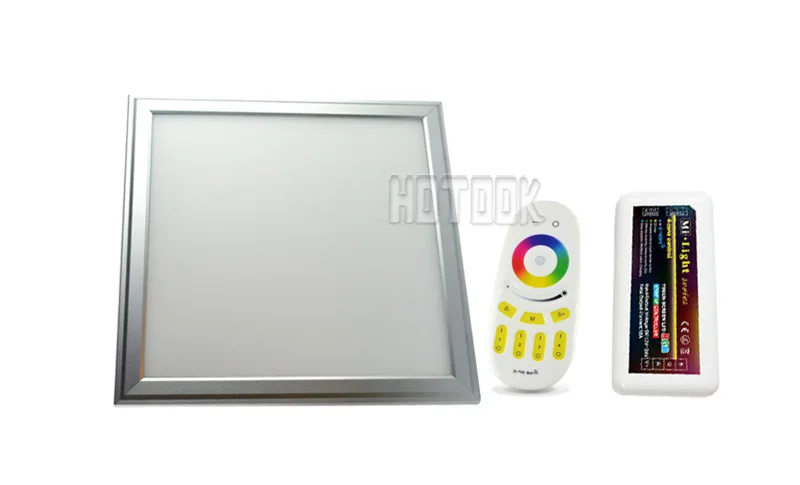

  • Name: 598*598mm RGB LED panel DMX

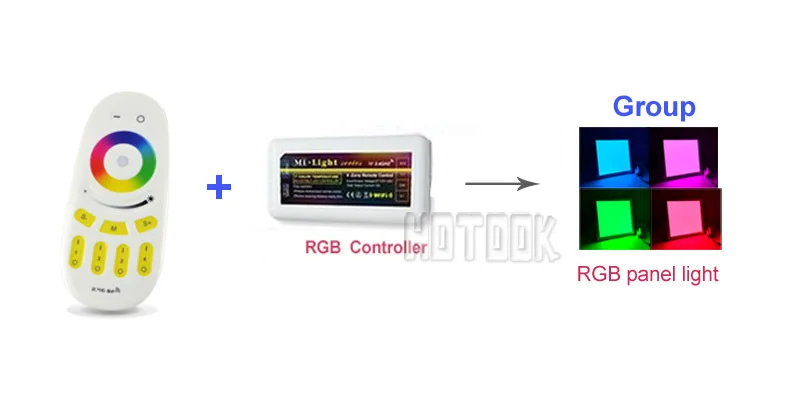

  • advantage1: RGB with DMX controller
  • advantage2: super bright
  • Usage: Bar decoration indoor lighting
  • output Voltage: 12v
  • size1: 30*30cm 320*320cm
  • size2: 60*60cm 595*595mm
  • Name2: RGB LED panel flexible dimmable

Packaging & Delivery

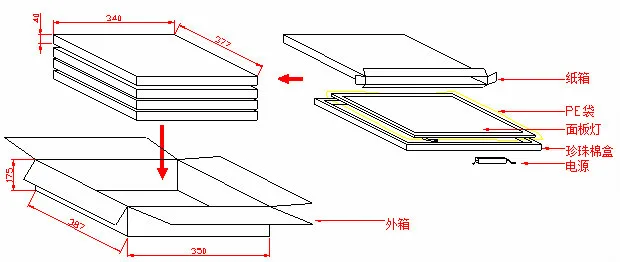

Packaging Details: Custom-made retail packing could be offered
Delivery Detail: 7

Specifications

RGB LED panel flexible dimmable
1:RGB
2: 2.4G RF wireless
3: Custom made size
4:60*60cm 595*595mm 598*598mm

RGB LED panel flexible dimmable  Europe standard 598*598mm RGB LED panel DMX  works with wifi controller

Model:   PN-63P23W60cm





MAIN SPECIFICATIONS(T=20℃)

NUMBR

ITEM

DESCRIPTION

01

Input Voltage/Output



AC96-265V /  AC12V

02

Total Power



36W

03

RED Power

9W

GRREN Power(

12.5W

BLUE Power(

12.5W

04

LED Qty

84 PCS

05

Color



Cool white /Red /Green /Blue /Yellow/Orange /Warm white /Natural white /RGB

06

Life time



>50,000 Hours

07

OperatingTemperature



-10℃to+40℃

08

Storage Temperature



-20℃to+85℃

09

Humidity Operating



10-80%

10

Humidity Storage



10-80%

11

Certifications



CE,FCC,ROHS

12

Weight



1.27 KG

13

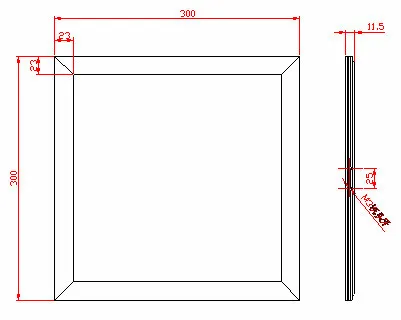

Size



598*598*11.5mm

14

IK Code



IK01

15

IP Code



IP41

16

Luminaires Class



Class II

17

Fixing Ways



in-built ,Mounting,





Features



1.  Energy saved up to 50%.high brightness,even lighting output.

2.5-years life time



3.Wide range of input voltage:AC100-240V



4.Instant start,no flickering,no humming



5.New high efficiency constant current driver



6.Special circuit design,each group of LEDs work separately,avoiding any

 problem of lighting output caused or influenced by single faulty LED



7.No electrical wave,conforming to CE



8.Green environmental protection,lead-free material,conforming to ROHS



9.No RF interference





Applications:

  1. 1.  Hotels 2.  Conference/Meeting rooms 3.  Factories&Offices 4.  Commercial Purposes
  1. 5.  Residential/Institution Buildings   6.  Schools,Colleges&Universitie7.  Hospitals
  1. 8.  Pleaces where energy saving and high color rendering index lightings required
